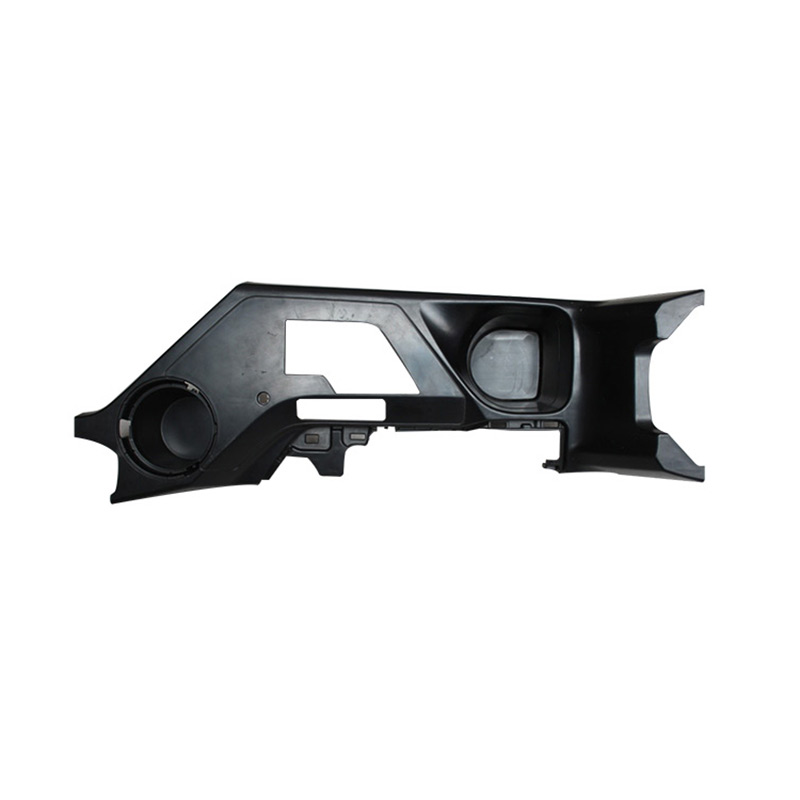

1-Automobile Gearbox Cover

Brief introduction : Automotive gearbox cover produced by big injection mold.

Part Material: PC/ABS

Part Size: 812.5x435.6x336.1mm

Dimensional Tolerance: Overall dimension ≤ ±0.5mm local size ≤ ±0.05mm

Technical Issue : large size product, complicated structure, filling difficulties, easy to deform

Our Capability: CNC machining、High speed CNC machining、EDM machining、Charmill EDM machining、Sodick LS-WEDM machining、Wire Cutting EDM machining、MT Texture/VDI3400 Texture/Yixin Texture、CMM(Coordinates Measuring 、Machine) measure、OMM（Optical Measuring Machine) measure、Robotic manipulator pick out products、Adjust the product color according to the RAL or Pantone color card

Send Inquiry

Product Description

This is a automotive gearbox cover sample produced by the mold that our company helped the customer process. The characteristic of this product is very long, the mould structure is very complicated, the height drop is very large and it is very difficult to be filled. However, through the efforts of all the staff of our company, all the problems were overcome one by one, and the mold production went smoothly. Once the sample was sent to the customer, it soon passed the performance testing and won great praise from the customer.
