Electronic Plug-ins Bracket

Electronic Plug-ins Bracket

Brief Introduction: Electronic insert produced by injection mold

Part Material: PET

Part Size:60x45x25mm

Dimensional Tolerance:  overall dimension ≤ ±0.02mm    local size ≤ ±0.01mm

Technical Issue: high precision, hardened steel, small feature, multi ribs, hard filling, air vent insert, hard mold processing

Send Inquiry

Product Description

Our Capability:

CNC machining

High speed CNC machining

EDM machining

Charmill EDM machining

Sodick LS-WEDM machining

Wire Cutting EDM machining

MT Texture/VDI3400 Texture/Yixin Texture

CMM(Coordinates Measuring Machine) measure

OMM(Optical Measuring Machine) measure

Robotic manipulator pick out products

Adjust the product color according to the RAL or Pantone color card

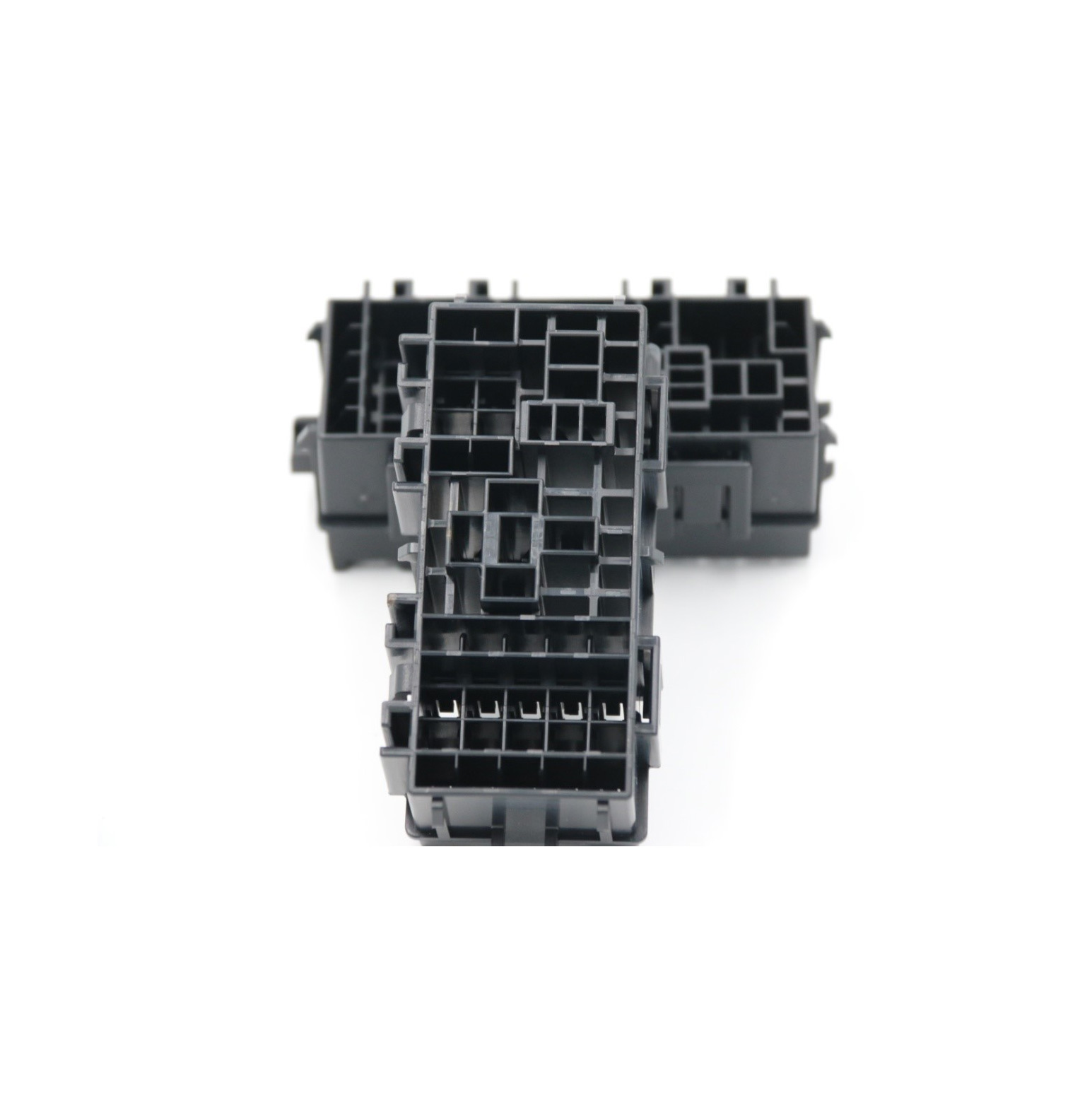

This is a sample produced by the mould of an electronic plug ins bracket which our company helps customers to process. This plug ins bracket is characterized by small size, but the size requirement of the product is very precise. In addition, there are many touch-through and insert-through structures on the product, and all die core is made of hard materials.  The plug ins bracket features are very fine and filling is very difficult. die core is all made up of pieces and each
