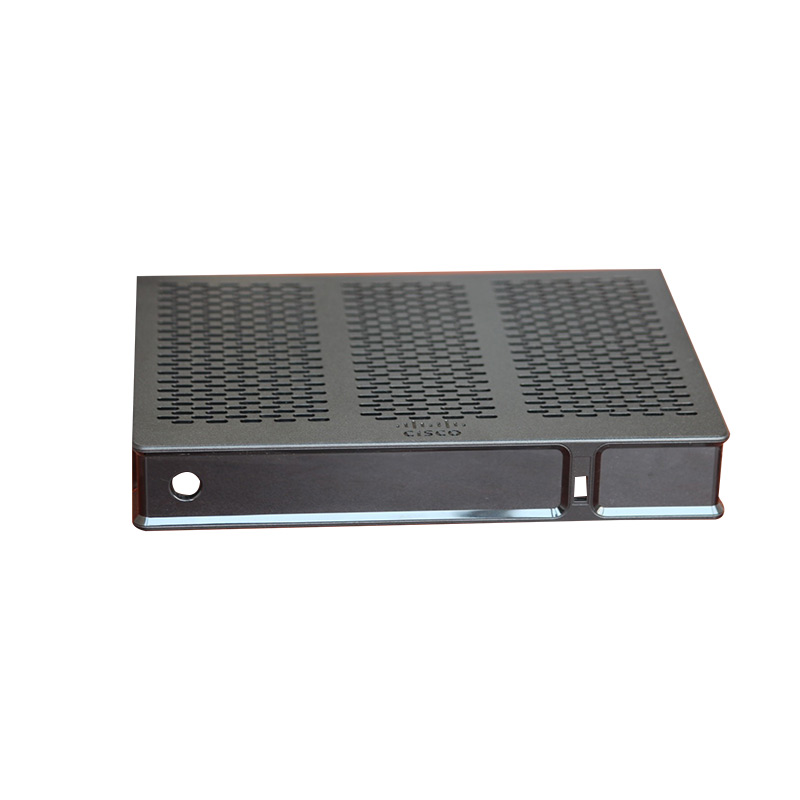

Acoustics Bottom Cover

Acoustics Bottom Cover

Brief introduction : Acoustics bottom cover molded by injection mold

Part material: PC/ABS

Part Size: 312x200x85mm

Dimensional Tolerance:  overall dimension ≤ ±0.1mm    local size ≤ ±0.02mm

Technical Issue:  High gloss, too many small kiss off holes, welding lines, strong mold structure, harden steel, surface nitriding, hard filling, difficult machine adjustment.

Send Inquiry

Product Description

Our Capability:

CNC machining

High speed CNC machining

EDM machining

Charmill EDM machining

Sodick LS-WEDM machining

Wire Cutting EDM machining

MT Texture/VDI3400 Texture/Yixin Texture

CMM(Coordinates Measuring Machine) measure

OMM(Optical Measuring Machine) measure

Robotic manipulator pick out products

Adjust the product color according to the RAL or Pantone color card

This is a acoustics bottom cover sample produced by the mould that our company helps customers to process. very high appearance requirements. Because this product features a lot of kiss off holes it is easy to appear weld lines on the visible surface during injection molding. It is very difficult to adjust the injection molding parameter. However, through the efforts of all employees of our company, all the problems were overcome one by one, and the mold production went smoothly.  Once the sample was sent to the customer, it passed the performance testing very quickly and won great praise from the customer.
